Model Compatibility: 2300, 320, 322, 323, 325, 328, 329, 331, 334, 335, 337, 341, 425, 428, 430, 435, 542, 543, 553, 5600, 653, 751, 753, 763, 773, 7753, 853, 863, 864, 873, 963, A770, E17, E26, E30, E32, E32e, E32i, E34, E35, E35i, E35z, E37, E42, E45, E50, E50z, E55, E55W, E55z, E57W, E60, E62, E63, E80, E85, S630, S650, S740, S770, T630, T650, T740, T770
Mating ends of the newer couplers are compatible with older style couplers, allowing old and new couplers to connect with each other. However, an FFI coupler will not function in an FFH block and vice versa.

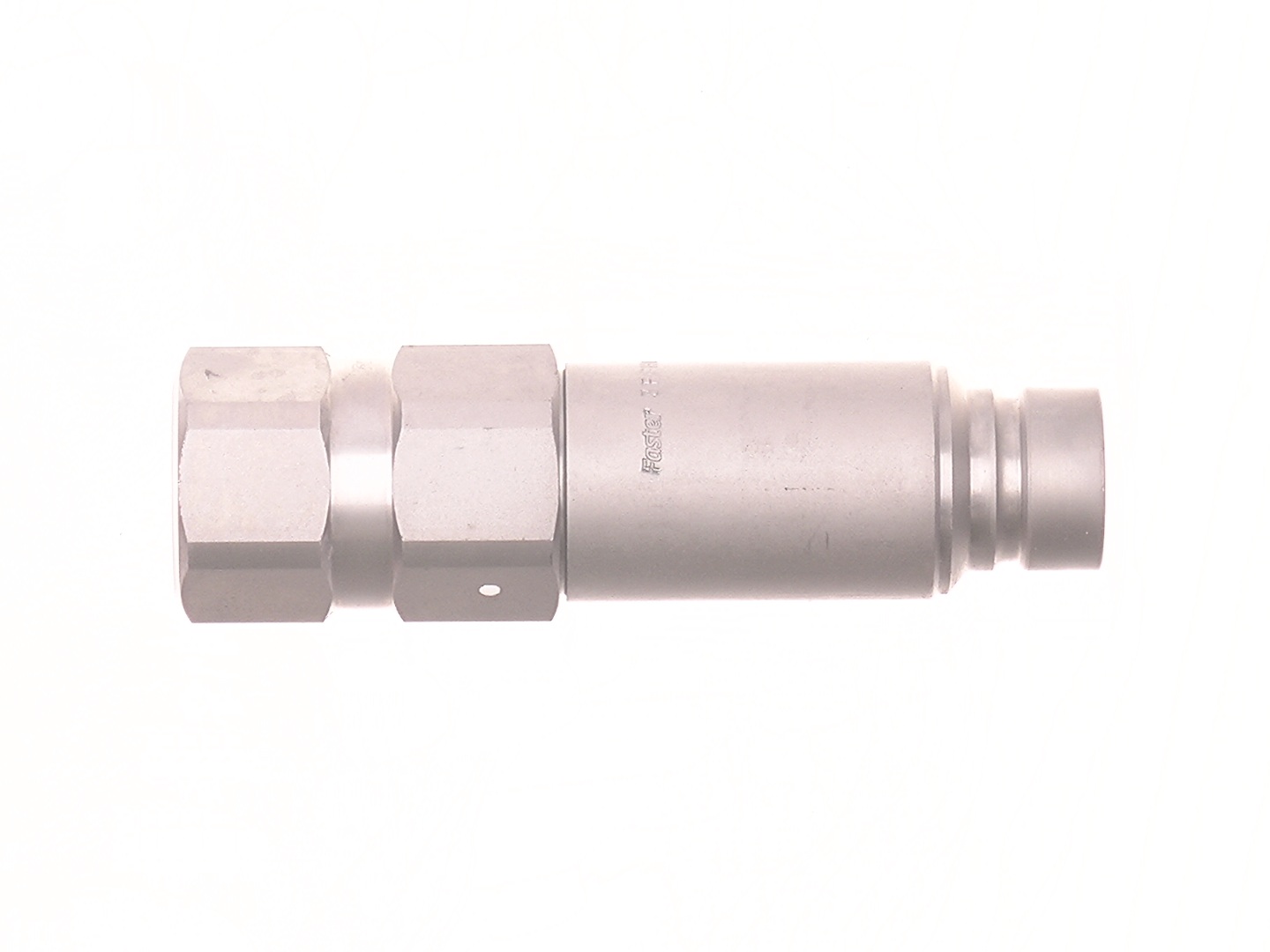

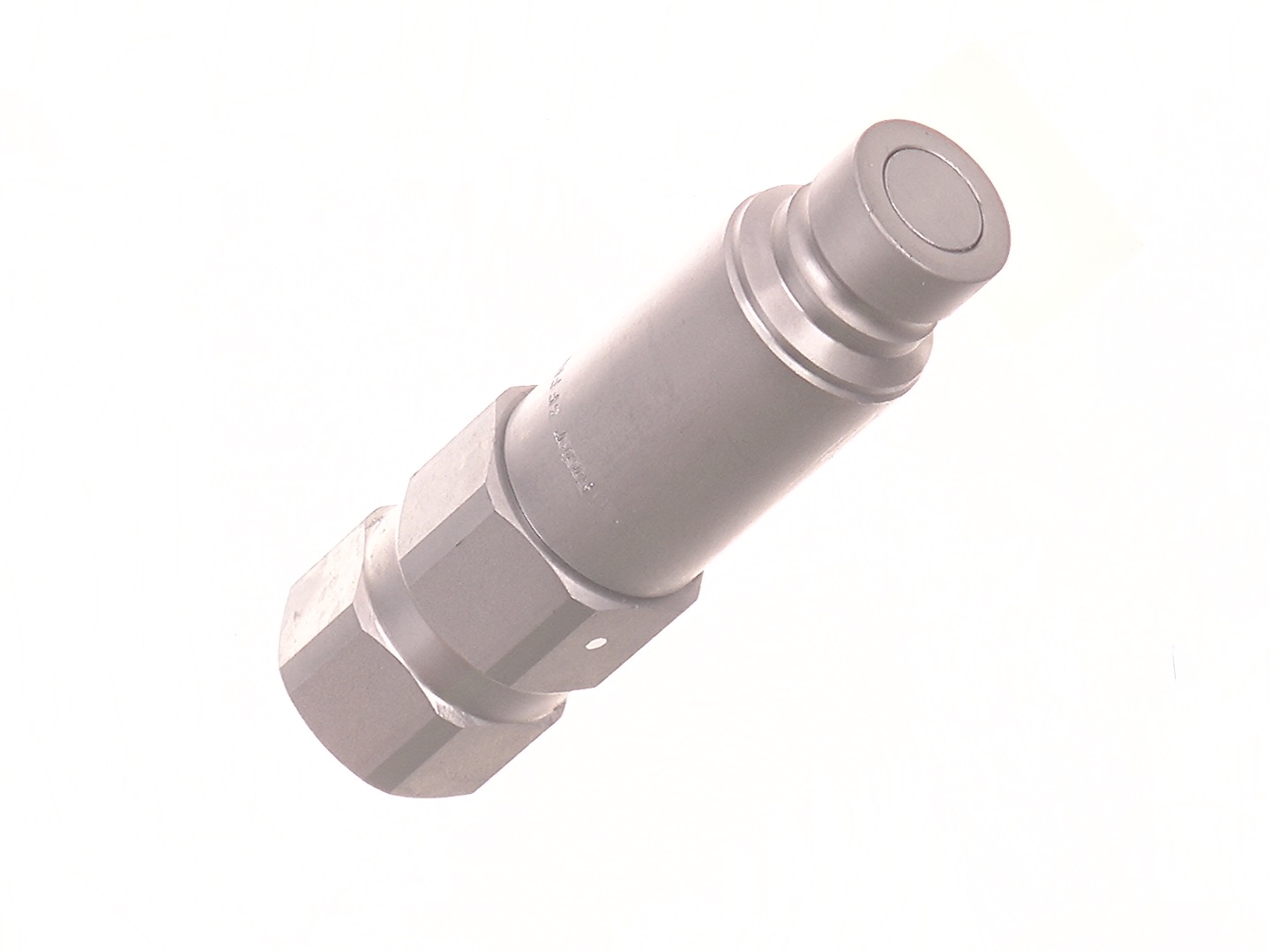

The best way to identify which version block/coupler is installed is by looking for the manufacturers stamp: previous blocks and couplers have an FFI or FI, newer have an FFH or FH. The stamp is visible on the outside sleeve of male couplers. The stamp is also on the side of the block. Blocks that are connected inside the lift arm must be removed to see the stamp.
No fluid spillage or air inclusion keeping equipment safe and clean
Avoid costly fluid spills
Internal components designed to maximize fluid flow with minimal change in pressure
Connect Under Pressure
Working pressure of 35 MPa
High grade carbon steel with zinc-nickel plating
ISO 16028 interchange
Half inch body size
SAE thread
O-ring Boss
Manufacturers stamp: 3FFH08 34SAE M
