Model Compatibility: A770, S450, S510, S530, S550, S570, S590, S595, S630, S650, S740, S750, S770, S850, T450, T550, T590, T595, T630, T650, T740, T750, T770, T870

View what’s behind the machine with a rear camera kit for Bobcat M Series loaders.

Easy to use and plug-and-play installation with no change to machine’s harnessing.
The system is integrated with the machine for an automatic view and turns on with the machine ignition.
When the machine is running, the system continuously shows the rear view.
The cameras internal heaters remove condensation, snow and ice.
With multiple screen and camera settings to enhance the display image, the rear camera kit adds another option for viewing the rear of the machine.

4.3 Inch Color TFT LCD Display

Mounts to any Bobcat M- or M2-Series loader
LCD display with LED backlit screen
Continuous view: works during forward and reverse motion of the machine
Auto-on with ignition activation
Brightness setting for day or night view: three manual dimming modes for increased ease of use in bright or dark conditions
Manually adjust the color, contrast, brightness and tint
IPx6 rated waterproof enclosure
Anti-glare, scratch resistant protected screen
Operating temperature range of 30C to 80C.

Camera

118-degree horizontal lens angle for wide viewing capabilities
89-degree vertical viewing angle for enhanced upward and downward viewing
Low level light capabilities for usage in darker environments
Heavy-duty, robust, stainless steel mounting hardware and a heat and impact resistant housing that is waterproof and dust proof
IP69K rating: camera can withstand a high-pressure cleaning with water
Shock and vibration resistant for usage in compact equipment applications including wind, dirt, rain, and rugged terrains
Operating temperature of 40C to 85C.

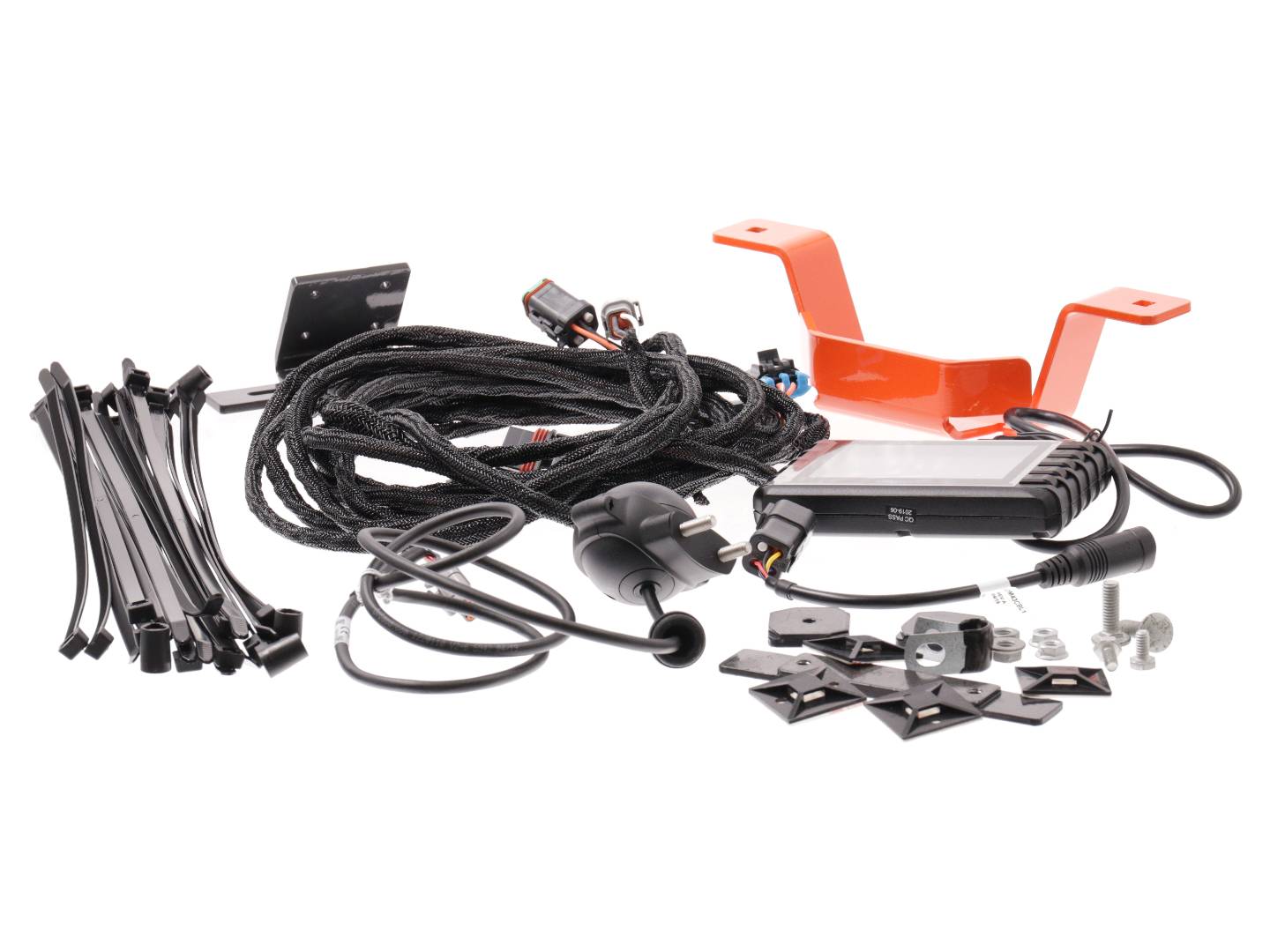

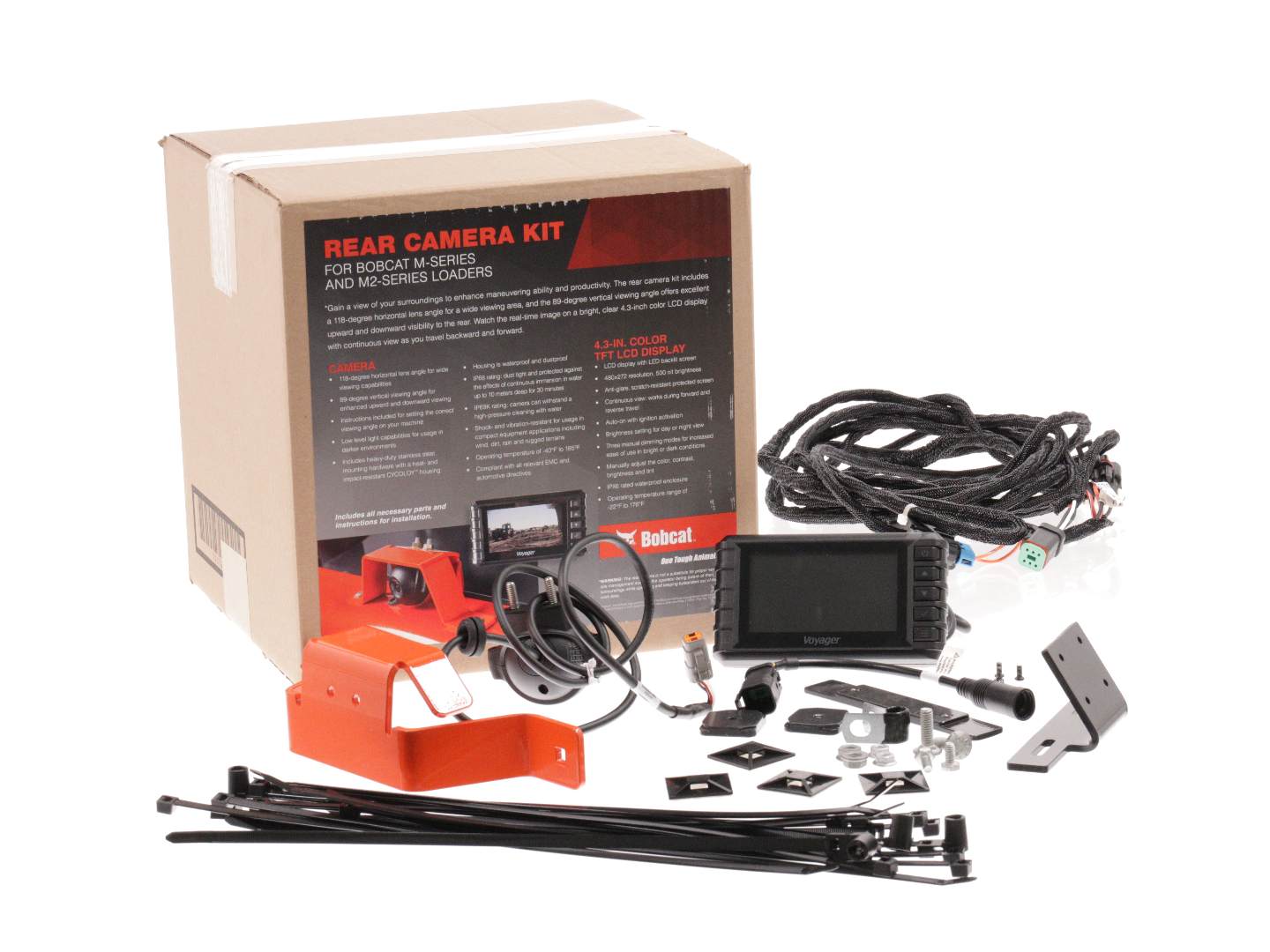

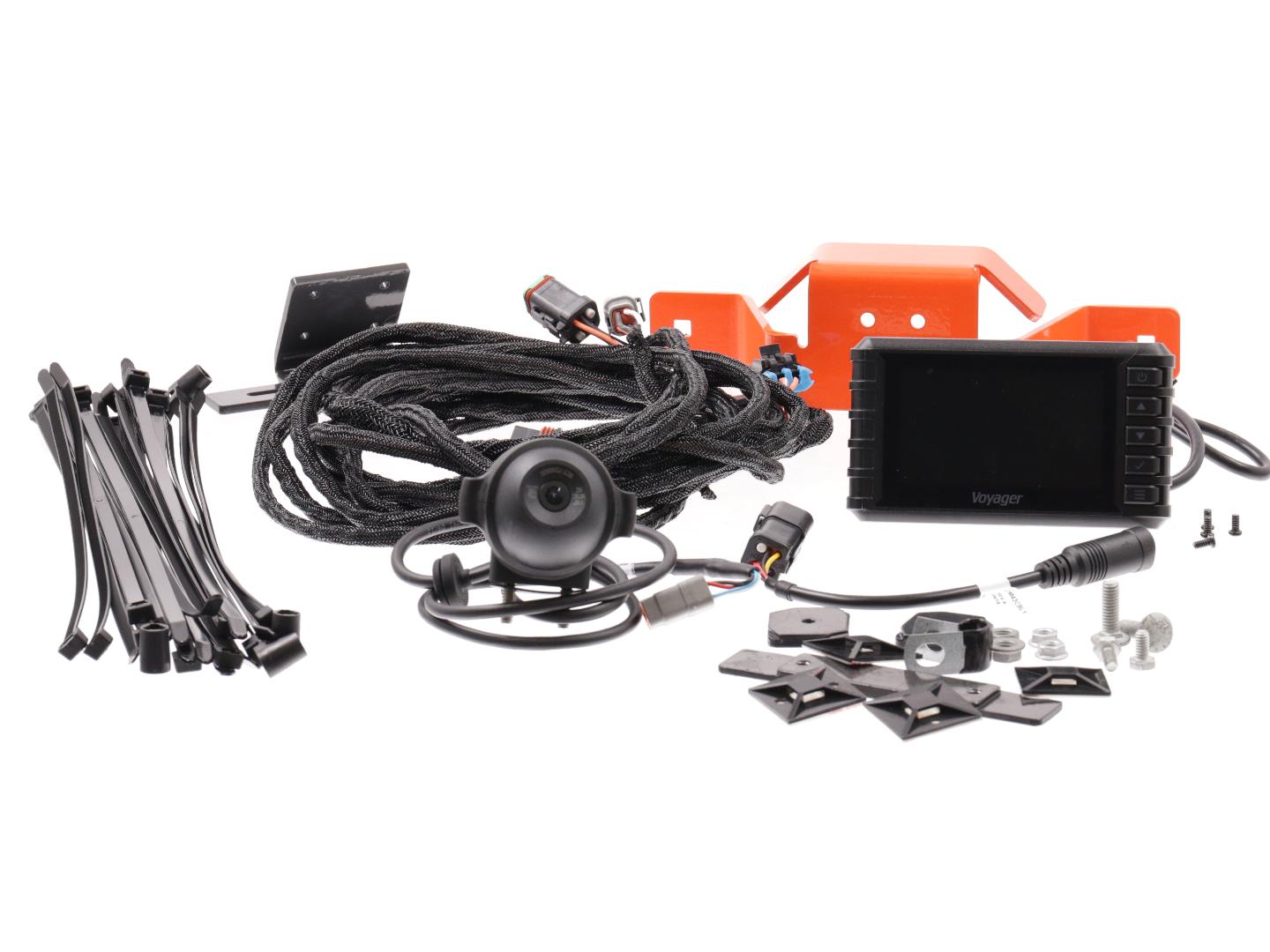

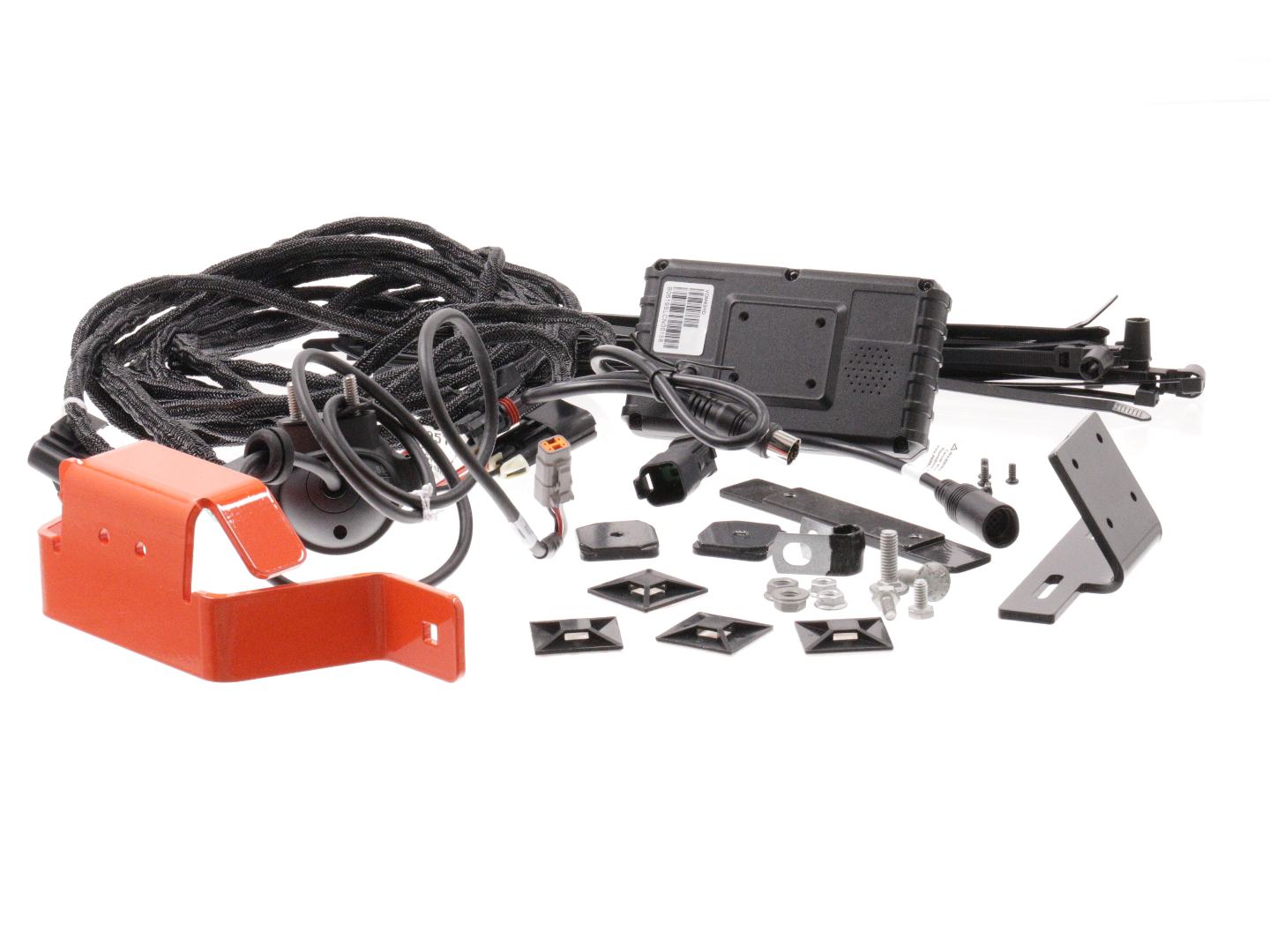

Kit content:

Camera
4.3″ Color TFT LCD Display
Harnessing
Mounts
Mounting Hardware
