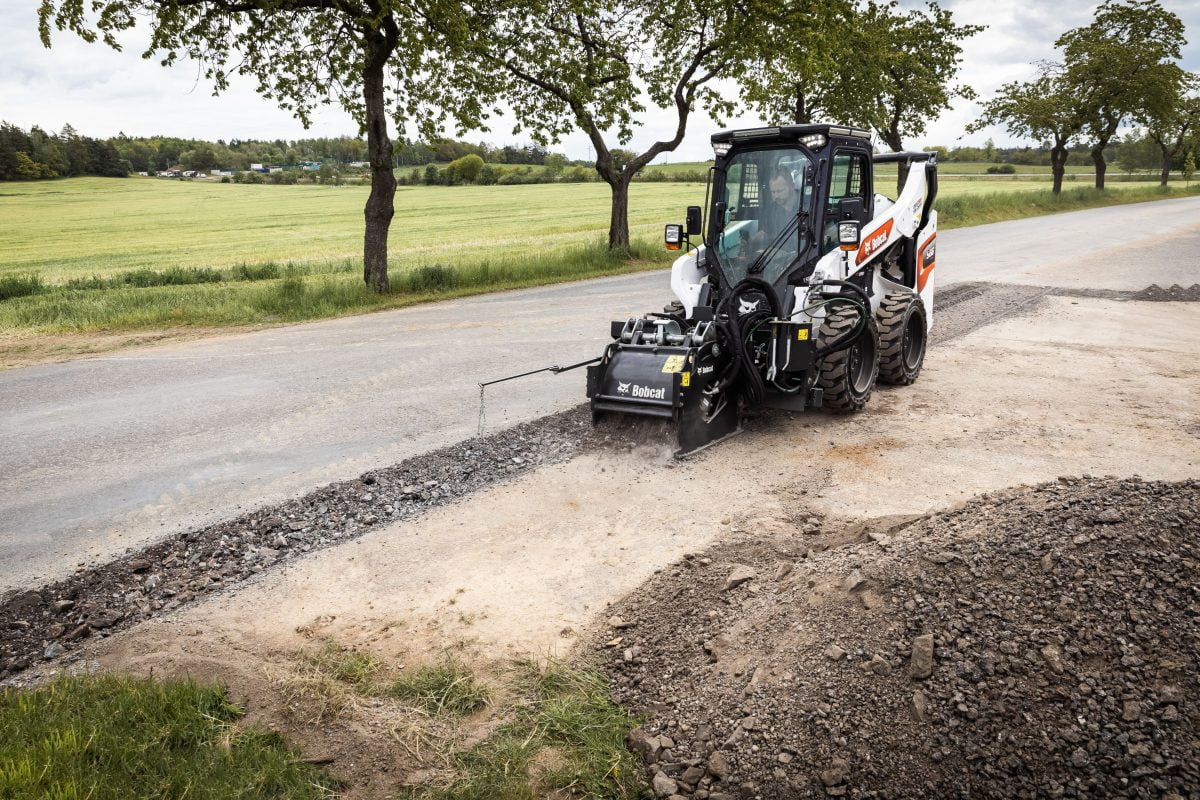

Self Levelling Planers

Cut and mill concrete and asphalt with the controlled removal process of the planer attachment.

The milling process involves low angle, high velocity blows in a controlled pattern that uniformly chips pavement. The self-levelling system also offers the advantage of maintaining a constant planning depth, independent of the position of the planer, even, for example, when the loader lift arm position changes or when the loader drives over bumps or debris. The Bobcat® planer attachment is much less expensive to maintain and more maneuverable than dedicated planers. The planer attachment is versatile and durable, delivering high torque for maximum cutting and milling performance.

Performance

• Teeth life: 20 – 50 hours
• Drum life: 200 – 400 hours
• Production rate: 40 – 50 m²/h

Key Information:

• Self-levelling feature – for following irregular surfaces.
• Hydraulic side-shift – for planing close to walls and curbs, and to easily reposition the drum for another pass.
• Hydraulic depth adjustment on each ski – for constant contact to the ground, even working with one ski on the curb or on the surface already milled.
• Hydraulic planer tilting – for planing sloping surfaces or to match two uneven surfaces.
• Direct-drive high torque motors – for low maintenance and high efficiency.
